Packaged Heating and Cooling Systems
Our complete line of packaged systems includes packaged air conditioners, packaged gas furnaces and air conditioners, packaged heat pumps, and packaged hybrid heat. These self-contained systems are located outside of the home, mounted on the ground or the roof, and ducted into the home.
Just like individual furnaces, air conditioners, and heat pumps, these package units carry SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 ratings. The higher the rating, the more energy efficient the unit is. The Department of Energy’s (DOE) new minimum efficiency standards vary by region, so your choice of package units will depend on where you live.

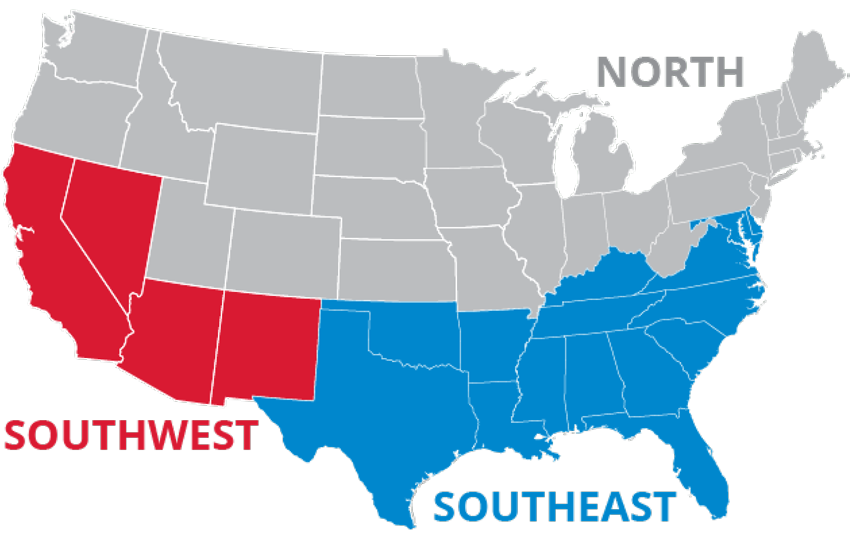

The DOE’s regional breakdown by state is as follows:
- North
114.0 SEER/13.4 SEER2
8.0 HSPF/6.7 HSPF2
80% AFUE
- Southeast
15.0 SEER/ 14.3 SEER2
8.0 HSPF/6.7 HSPF2
90% AFUE
- Southwest
15.0 SEER/ 14.3 SEER2
8.0 HSPF/6.7 HSPF2
90% AFUE
SEER/SEER2 And HSPF/HSPF2
SEER2 is an updated rating standard introduced by the DOE. SEER2 standards are intended to provide a better gauge of typical home operating conditions whereas the older SEER rating utilized very precise protocols to determine ratings in ideal conditions. SEER2 standards include updated testing methods that give a better indication of how a unit will operate in the real world.
HSPF2 is the newest type of rating system that expands on the basic HSPF scale.
Much like miles-per-gallon for a car, SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 offer an easy way to compare efficiencies of different products – the higher the rating, the more efficient the unit. Just be sure you are comparing either SEER vs SEER or SEER2 vs SEER2 (same for EER/EER2 and HSPF/HSPF2).
EER2 Versus SEER2
EER2 and SEER2 both evaluate an air conditioner’s energy efficiency, but they’re concerned with two different types of temperature conditions:
- EER2 measures an air conditioner’s efficiency at the peak cooling temperature of 95°F.
- SEER2 measures an air conditioner’s efficiency throughout an entire cooling season, with temperatures ranging from 65°F to 104°F.
Right-Size Your HVAC Packaged Units. Give Classic Plumbing & Heating a Call Today!
We carry a wide offering that includes advanced features such as 2-stage compressors, variable speed fans and quiet operation. Call us today!
Air Conditioning Only Product Offering
XR13.4c Air Conditioner Packaged System
Model Family: 4TCC4
Efficiency SEER2: Up to 13.4 SEER2
Efficiency EER2: N/A
Energy Star Rated: No
Sound Level: Quiet Operation
Blower Motor: Variable-Speed Blower Motor With Comfort-R™
Refrigerant Type: R410A
Compressor: Single-speed Climatuff compressor
Factory Warranty Parts: 10-year limited warranty on functional parts with registration
Factory Warranty Compressor: 10-year limited warranty on compressor with registration
Manufacturer's Stated Benefits:
- All-aluminum Spine Fin™ coil
- Durable Weather-Beater top
- Appliance-grade finish
Gas Heating & Electric Cooling Product Offering
XL15c Packaged Gas/Electric System
Model Family: XL15c
Efficiency SEER2: Up to 15 SEER2
Efficiency EER2: N/A
Annual Fuel Utilization Efficiency: Up to 81% AFUE
Energy Star Rated: N/A
Sound Level: Ultra-quiet operation
Refrigerant Type: R-410A
Gas Valve: Two-stage gas valve
Blower Motor: Variable-speed blower motor with Comfort-R
Compressor: Two-speed Climatuff® compressor
Factory Warranty Parts: 10-year parts limited warranty
Factory Warranty Compressor: 10-year compressor limited warranty
Heat Exchanger Warranty: 20-year heat exchanger limited warranty
Manufacturer's Stated Benefits:
- 2-stage gas heat
- Variable-speed indoor blower motor
- Comfort-R™ mode
- Spine Fin™ condenser
- Ultra quiet
- Tough corrosion and UV-resistant paint
- Single phase only
- All stainless steel heating system

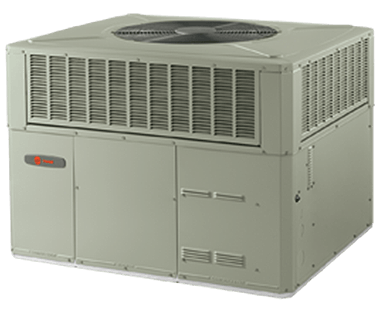

XR13.4c Gas/Electric Packaged System
Model Family: XR13.4c
Efficiency SEER2: Up to 13.4 SEER2
Efficiency EER2: N/A
Annual Fuel Utilization Efficiency: Up to 81% AFUE
Energy Star Rated: No
Sound Level: Ultra-quiet operation
Refrigerant Type: R-410A
Gas Valve: Two-stage gas valve
Blower Motor: Variable-speed blower motor with Comfort-R
Compressor: Single-speed Climatuff® compressor
Factory Warranty Parts: 10-year registered limited warranty on internal functional parts
Factory Warranty Compressor: 10-year registered limited warranty on compressor
Heat Exchanger Warranty: 20-year registered limited warranty on heat exchanger
Manufacturer's Stated Benefits:
- Composite Vortica™ blower will deliver the sustained performance you expect season after season
- All stainless-steel heating system
- Tough corrosion and UV-resistant paint
- Single phase only
Heat Pump Product Offering
XL15c Packaged Gas/Electric System
Model Family: XL15c-4WCY5
Efficiency SEER2: Up to 15 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 7.5 HSPF2
Energy Star Rated: ENERGY STAR®
Sound Level: Ultra-quiet operation
Refrigerant Type: R-410A
Blower Motor: Composite Vortica™ blower
Compressor: Two-stage Climatuff® compressor
Factory Warranty Parts: 10-year parts limited warranty
Factory Warranty Compressor: 12-year compressor limited warranty
Manufacturer's Stated Benefits:
- Variable-speed indoor blower motor
- Single phase only
- Composite Vortica™ blower
- Tough corrosion and UV-resistant paint
- Demand defrost
- Ultra quiet
XR13.4c All-in-One Heat Pump Packaged System
Model Family: 4WCC4
Efficiency SEER2: Up to 13.4 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 7 HSPF2
Energy Star Rated: No
Sound Level: Ultra-quiet operation
Refrigerant Type: R-410A
Blower Motor: Composite Vortica™ blower
Compressor: Climatuff® compressor
Factory Warranty Parts: 10-year registered limited warranty on internal functional parts
Factory Warranty Compressor: 10-year registered limited warranty on compressor
Manufacturer's Stated Benefits:
- All-aluminum Spine Fin™ coil
- Tough corrosion and UV-resistant paint
- Advanced Vortica™ blower motor
- Rugged, all-steel cabinet
- Electronic demand defrost
- Advanced air flow system for quiet and efficient outdoor operation

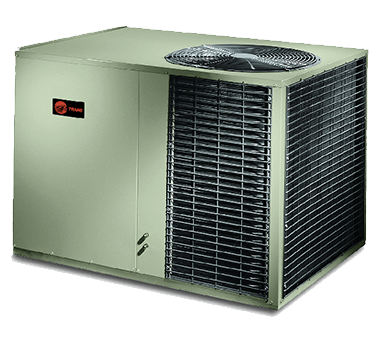

XR13.4h Packaged Over/Under Heat Pump
Model Family: 4WHC4
Efficiency SEER2: Up to 13.4 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 6.7 HSPF2
Energy Star Rated: No
Sound Level: Quiet operation
Refrigerant Type: R-410A
Blower Motor: N/A
Compressor: Climatuff® compressor
Factory Warranty Parts: 10-year registered limited warranty on internal functional parts
Factory Warranty Compressor: 10-year registered limited warranty on compressor
Manufacturer's Stated Benefits:
- Appliance-grade finish
- Electronic demand defrost
- Direct-drive two-speed blower motor
Dual Fuel/Hybrid Heating Product Offering
XL15c EarthWise® Hybrid Dual Fuel Packaged System
Model Family: XL15c
Efficiency SEER2: Up to 15.2 SEER2
Efficiency EER2: N/A
Annual Fuel Utilization Efficiency: 81% AFUE
Efficiency HSPF2: Up to 7.5 HSPF2
Energy Star Rated: ENERGY STAR®
Sound Level: Ultra quiet
Refrigerant Type: R410A
Blower Motor: Variable-speed blower motor with Comfort-R
Compressor: Two-stage Climatuff compressor
Factory Warranty Parts: 10-year limited warranty with registration
Factory Warranty Compressor: 12-year limited warranty with registration
Heat Exchanger Warranty: 20-year limited warranty with registration
Manufacturer's Stated Benefits:
- State-of-the-art fan system
- Stainless-steel heat exchanger and burners
