Mitsubishi Electric Ductless Systems
What is Duct Free?
For decades, split-zoning air conditioning and heat pump systems have been the quiet solution for cooling and heating problems around the world. Our quiet and powerful systems have three main components: an indoor unit, outdoor unit, and a remote control. Installation is as simple as mounting the indoor and outdoor units, connecting the refrigerant lines, and making a few electrical connections.
Why Mitsubishi Electric Systems?
Our commitment to empower homeowners to create their own customized comfort is fueled by continual innovation and refinement. Here are some of the technologies that help cool and heat your home more efficiently and effectively:
Hot-start
The indoor unit’s fan only blows air when the coil has warmed to the desired temperature. An energy-saving measure, it also prevents drafts of cold air at start-up.
i-see Sensor™
This sensor scans the room and adjusts temperature and air flow automatically. Maintain consistent comfort by eliminating cold and hot spots.
H2i® Technology
Hyper-Heating INVERTER (H2i) technology is designed to provide comfortable indoor temperatures in extreme cold-climate conditions (as low as -13° F) while saving energy and money.
Zone Control
Why cool or heat rooms you don’t use? Why sweat or shiver in those you do? Zone control allows you to optimize the temperature of any space with an indoor unit to save energy and reduce costs. Create your own perfect comfort zones!
Quiet Operation
Indoor units run quiet as a whisper and outdoor units run quieter than a refrigerator. You have to hear it (or not) to believe it!
Enhanced Filtration Systems
Washable filters last up to 10 years and remove pollen, dust, dander, and other allergens that reduce indoor air quality. Each room has its own filter to ensure pristine air.
Where Can Mitsubishi Electric Products Be Used?
If a room is too hot or too cold, Mitsubishi Electric Cooling & Heating can handle it! Mitsubishi split-zoning systems are specifically designed to improve the comfort level in an uncomfortably hot or cold room of an existing building. Because they don't require ductwork, they're the perfect heating and cooling systems for renovating older buildings that were constructed before air conditioning was available - even those with plaster walls and brick facades. The versatility and variety of applications for Mitsubishi Electric systems are virtually unlimited. They're an excellent choice for almost any spot cooling or heating situation, including enclosed sunrooms, upstairs bedrooms, classrooms, hospitals, nursing homes, restaurants, hotels, workout rooms, computer rooms, offices, and churches.
They're also equipped with an anti-allergen filter and prevent the crossflow of air with contaminants. And because they can be controlled by zone, it's easy to set the controls for the exact room temperature you want.
How does it work? Mitsubishi Electric Cooling & Heating can fit into almost any space because their innovative engineering optimizes the capabilities of the INVERTER technology and R410A refrigerant for more efficient systems with smaller indoor and outdoor units. R410A refrigerant is environmentally friendly, with zero Ozone Depletion Potential (ODP). The units themselves are also made of recyclable materials.
Control at Your Fingertips, Anytime, Anywhere!
Kumo Cloud
Personal Comfort Just Got Smarter
Kumo Cloud mobile app and web service puts enhanced control of your home’s cooling and heating right at your fingertips, no matter what.
Mitsubishi High Wall Indoor Ductless Heat Pump Products

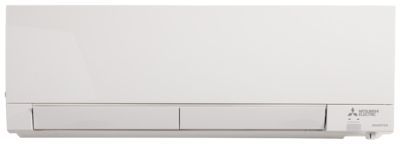

Deluxe Wall-Mounted Indoor Unit-Msz-Fs
View Brochure
Model Family: MSZ-FS
Purpose: Heat and cool
Zone Capability: Single zone
Efficiency SEER2: Up to 32.2 SEER2
Efficiency EER2: Up to 19.05 EER2
Efficiency HSPF2: Up to 11.9 HSPF2
Matching Outdoor Unit: Single-zone: MUZ-FS
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: Multiple fan speed options: quiet, low, medium, high, super-high, auto
Sound Level: As low as 27 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 10-year limited warranty, 12-year limited warranty if installed by Diamond contractor
Manufacturer's Stated Benefits:
- Triple-action filtration: Nano platinum filter, deodorizing filter, and electrostatic anti-allergy enzyme filter
- Hot-start technology: no cold air rush at equipment startup or when restarting after defrost cycle
- Absence Detection for energy-saving mode

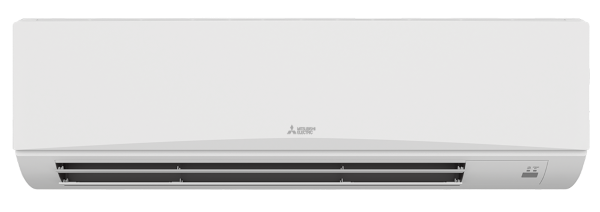

Premier Wall-Mounted Indoor Unit
View Brochure
Model Family: MSZ-GS
Purpose: Heat and cool
Zone Capability: Single
Efficiency SEER2: Up to 28.4 SEER2
Efficiency EER2: Up to 15.4 EER2
Efficiency HSPF2: Up to 10.9 HSPF2
Matching Outdoor Unit: Single-zone: MUZ-GS**NA
Matching Outdoor Unit: Multi-zone: MXZ
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds:
Sound Level: As low as 34 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts and compressor warranty with registration, 12-year limited warranty when installed by Diamond contractor
Manufacturer's Stated Benefits:
- Powerful Mode for rapidly cooling or heating a space to the desired temperature
- Econo Cool is a feature that temporarily adjusts the air flow to maintain comfort while using less energy.
- An indoor unit with this capability can move air throughout the room like an oscillating fan.

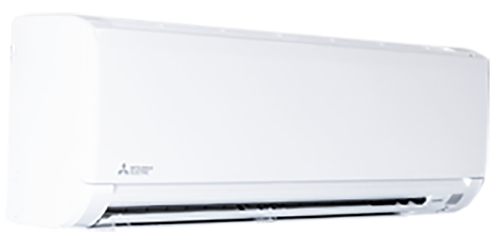

Wall-Mounted Heat and Cool MSZ-HM
Model Family: MSZ-HM
Purpose: Heat and cool
Zone Capability: Single zone
Efficiency SEER2: Up to 20 SEER2
Efficiency HSPF2: Up to 10 HSPF2
Matching Outdoor Unit: Single-zone: MUZ-HM
Energy Star Rated: ENERGY STAR
Refrigerant Type: R-410A
Number of Fan Speeds: 4 fan speeds
Sound Level: As low as 33 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 10-year limited warranty, 12 years if installed by Diamond installer
Manufacturer's Stated Benefits:
- Econo Cool is a feature that temporarily adjusts the air flow to maintain comfort while using less energy.
- An indoor unit with this capability can move air throughout the room like an oscillating fan.

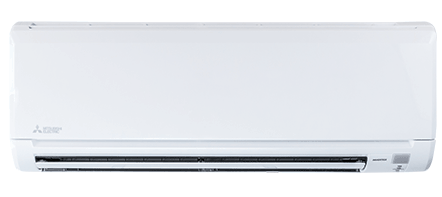

18 SEER2 Wall-Mounted Indoor Unit
Model Family: MSZ-WR
Purpose: Heat and cool
Zone Capability: Single zone
Efficiency SEER2: Up to 18 SEER2
Efficiency EER2: Up to 11 EER2
Efficiency HSPF2: Up to 8.5 HSPF2
Matching Outdoor Unit: Single-zone: MUZ-WR
Energy Star Rated: No
Refrigerant Type: R-410A
Number of Fan Speeds: 4 fan speeds
Sound Level: As low as 33 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 10-year limited warranty, 12-year limited warranty when installed by a Diamond contractor
Manufacturer's Stated Benefits:
- Econo Cool is a feature that temporarily adjusts the air flow to maintain comfort while using less energy.
- An indoor unit with this capability can move air throughout the room like an oscillating fan.
Mitsubishi High Wall Indoor Ductless Cool-Only Products

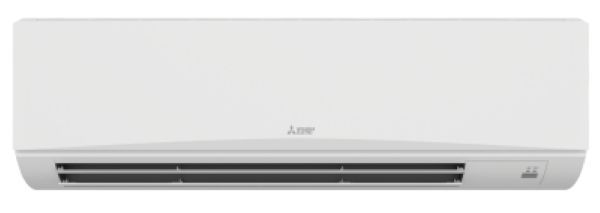

Cooling-Only, Wall-Mounted Indoor Unit
Model Family: MSY-GS
Purpose: Cool only
Zone Capability: Single zone
Efficiency SEER2: Up to 28.4 SEER2
Efficiency EER2: Up to 15.4 EER2
Matching Outdoor Unit: Single-zone: MUY-GS**NA
Energy Star Rated: ENERGY STAR
Refrigerant Type: R-410A
Sound Level: As low as 34 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 10-year limited warranty, 12-year limited warranty when installed by a Diamond installer
Manufacturer's Stated Benefits:
- Econo Cool is a feature that temporarily adjusts the air flow to maintain comfort while using less energy.
- An indoor unit with this capability can move air throughout the room like an oscillating fan.
- Powerful Mode temporarily drops or raises the set temperature in order to quickly bring your room to your desired temperature.

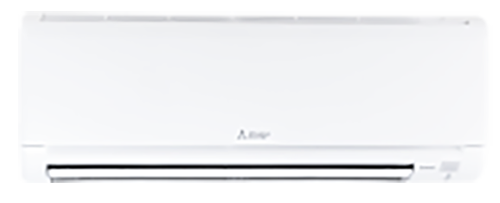

Wall-Mounted Air Conditioner MSY-GL
View Brochure
Model Family: MSY-GL
Purpose: Cool only
Zone Capability: Single zone
Efficiency SEER2: Up to 24.6 SEER
Matching Outdoor Unit: Single-zone: MUY-GL
Matching Outdoor Unit: Multi-zone: N/A
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: 5 fan speeds
Sound Level: As low as 19 DBA
Wireless Remote: Yes
Factory Warranty Parts: 10-year parts limited warranty upon timely registration, 12-year if installed by a Diamond contractor
Manufacturer's Stated Benefits:
- This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
- This model has multi-stage allergen filtration, removing particulates and contaminants from the air.
Mitsubishi Alternate Indoor Ductless Products

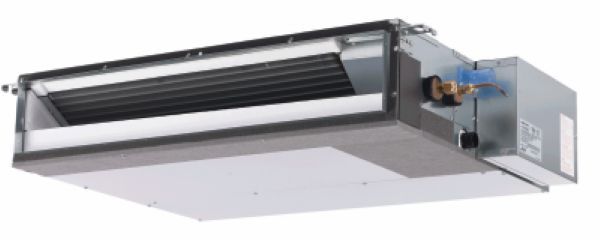

P-Series Indoor Model Low-Static Horizontal-Ducted Indoor Unit
Model Family: SEZ-KD
Purpose: Heat/cool
Zone Capability: Single & multi-zone
Efficiency SEER2: Up to 20.5 SEER2
Efficiency EER2: Up to 15 EER2
Efficiency HSPF2: Up to 9 HSPF2
Matching Outdoor Unit: Single-zone: SUZ-KA
Matching Outdoor Unit: Multi-zone: MXZ-B
Energy Star Rated: ENERGY STAR
Refrigerant Type: R-410A
Number of Fan Speeds: 3
Sound Level: As low as 30 dB(A)
Wireless Remote: No
Factory Warranty Parts: 10-year parts limited warranty, 12-year limited warranty if installed by a Diamond dealer
Manufacturer's Stated Benefits:
- Auto Restart: Especially useful at the time of power outages, the unit turns back on automatically when power is restored.
- Auto Changeover: System automatically switches between heating and cooling modes to maintain the desired temperature.

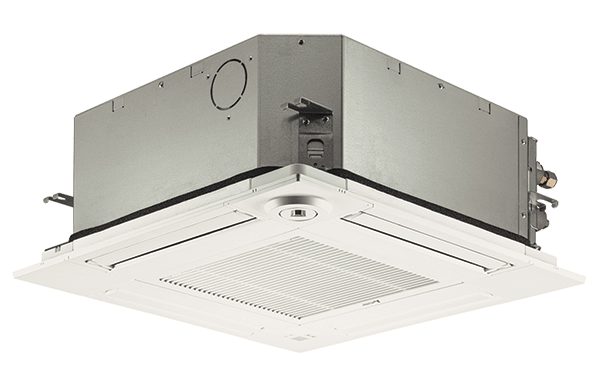

P-Series Indoor Model Four-Way Ceiling Cassette
Model Family: SLZ-KF
Purpose: Heat/cool
Zone Capability: Single & multi-zone
Efficiency SEER2: Up to 24 SEER2
Efficiency HSPF2: Up to 10 HSPF2
Matching Outdoor Unit: Single-zone: SUZ-KA
Energy Star Rated: ENERGY STAR
Refrigerant Type: R-410A
Number of Fan Speeds: 3
Sound Level: As low as 32 dB(A)
Wireless Remote: No
Factory Warranty Parts: 10-year limited warranty, 12-year limited warranty when installed by a Diamond contractor
Manufacturer's Stated Benefits:
- Auto Changeover: The unit automatically switches between heating and cooling modes to maintain the desired temperature.
- Auto Restart: Especially useful at the time of power outages, the unit turns back on automatically when power is restored.
- On/Off Timer: Use the remote control to set the times that the unit turns on and off.

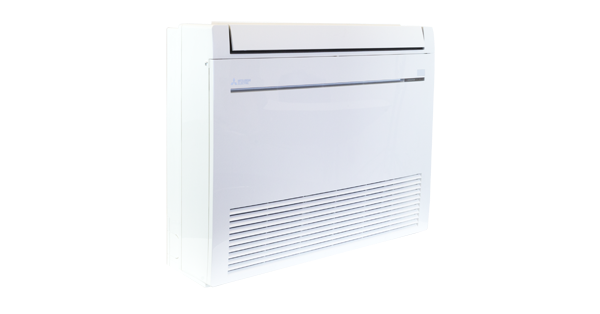

M-Series Indoor Model Floor-Mounted Indoor Unit
Model Family: MFZ-KJ
Purpose: Heat/cool
Zone Capability: Multi zone and single zone
Efficiency SEER2: Up to 28.7 SEER2
Efficiency HSPF2: Up to 11.3 HSPF2
Matching Outdoor Unit: Single-zone: MUFZ-KJ
Matching Outdoor Unit: Multi-zone: MXZ-C
Energy Star Rated: ENERGY STAR®
Refrigerant Type: R-410A
Number of Fan Speeds: 5 fan speeds
Sound Level: As low as 28 dB(A)
Wireless Remote: Yes
Factory Warranty Parts: 10-year limited warranty, 12-year limited warranty when installed by a Diamond contractor
Manufacturer's Stated Benefits:
- Auto Changeover: The unit automatically switches between heating and cooling modes to maintain the desired temperature.
- Auto Restart: Especially useful at the time of power outages, the unit turns back on automatically when power is restored.
- Weekly Timer: Easily set desired temperatures and operation ON/OFF times to match your lifestyle.
- On/Off Timer: Use the remote control to set the times that the unit turns on and off.
- Low-Temperature Cooling: Intelligent fan speed control on P-series outdoor units ensures optimum performance.
