Hybrid Heat System
With a traditional heating and cooling system, if you wanted to save more, you had to use less. But a hybrid heat system combines the benefits of intelligent control for both gas and electric heating to create an intuitive system that can actually react to changing conditions.
No matter what the temperature is outside, a hybrid heat system will automatically select the most efficient fuel source for your home, which means you'll stay warm in the winter, be cool in the summer, and save money all year long.
To design a hybrid heat system for your home, we professionally match one of our heat pump units with a natural gas furnace. Contact us to see how much energy you can save over your existing system.
Gas Furnace Choices for Hybrid Heat Systems

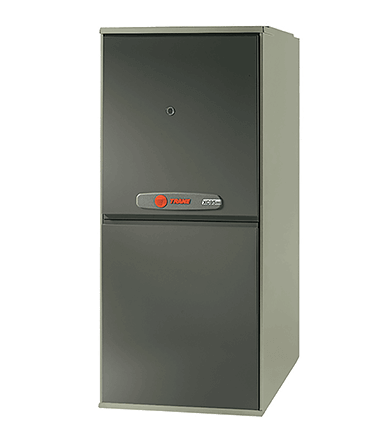

96 Modulating Variable Speed Gas Furnace
Model Family: 96 modulating variable-speed gas furnace
Annual Fuel Utilization Efficiency: Up to 97% AFUE
Energy Star Rated: ENERGY STAR®
Blower Motor: Variable-speed blower motor
Gas Valve: Modulating gas valve
Fan Heating Operation: Modulating
Factory Warranty Parts: 10-year limited warranty on functional parts with registration
Heat Exchanger Warranty: Lifetime limited warranty on the heat exchanger with registration
Sound Level: Quiet operation
Manufacturer's Stated Benefits:
- ComfortLink™ II capability
- Communicating user interface
- Increased dehumidification with Comfort-R™
- Heavy gauge, two-tone powder-painted cabinet
- Silicon nitride igniter
- One-piece aluminized steel primary heat exchanger
- Compatible with ERV, humidifier, and air cleaner

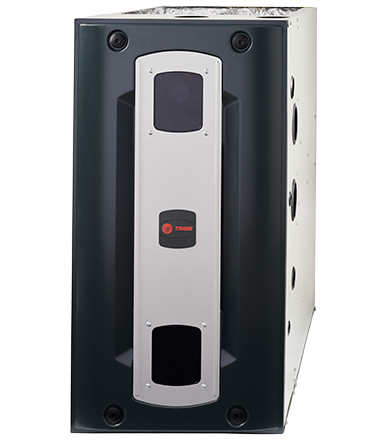

96 Two-Stage Gas Furnace
View Brochure
Model
Family: 96 two-stage gas furnace
Annual Fuel Utilization Efficiency: Up to 96% AFUE
Energy Star Rated: ENERGY STAR®
Blower Motor: ECM constant torque, high-efficiency motor — electrically efficient
Gas Valve: Two-stage
Inducer Draft Motor: CTM blower motor
Fan Heating Operation: Two-stage
Factory Warranty Parts: 10-year limited warranty
Heat Exchanger Warranty: Lifetime limited warranty on heat exchanger
Sound Level: Quiet operation
Manufacturer's Stated Benefits:
- Re-designed cabinet platform to fit in tighter spaces
- Heavy gauge, two-tone powder-painted cabinet
- Stainless-steel primary and secondary heat exchanger
- Insulated cabinet for quiet operation
- 24v IFC — compatible with most thermostats
- Standard 34″ height
- Certified 1% airtight — meets the most stringent building codes

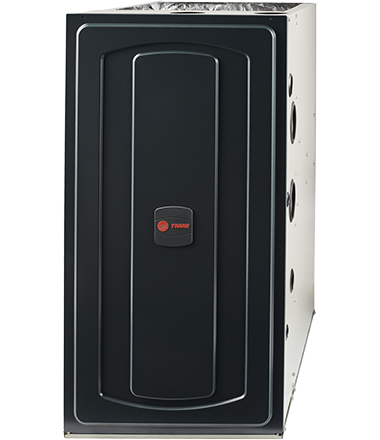

96 Single-Stage Gas Furnace
Model Family: 96 single-stage gas furnace
Annual Fuel Utilization Efficiency: Up to 96% AFUE
Energy Star Rated: ENERGY STAR® qualified
Blower Motor: High-efficiency constant torque ECM blower motor
Gas Valve: Single stage
Inducer Draft Motor:
Fan Heating Operation: Single-speed draft induced
Factory Warranty Parts: 10-year limited warranty
Heat Exchanger Warranty: Limited lifetime warranty
Sound Level: Quiet operation
Manufacturer's Stated Benefits:
- Self-diagnostic integrated furnace control board (IFC)
- Matches with single- and two-stage AC and HP for more system options
- Sealed combustion, 100% outside air option
- Multi-port, in-shot burners
- Tubular, stainless steel primary heat exchanger
- Patented Vortica™ II blower design
- Pre-painted galvanized steel cabinet
- Fully insulated for quiet operation
80 Two-Stage Gas Furnace
Model Family: 80 two-stage gas furnace
Annual Fuel Utilization Efficiency: 80% AFUE
Energy Star Rated: No
Blower Motor: High-efficiency 9-speed constant torque ECM motor
Gas Valve: Two-stage
Fan Heating Operation: Two-speed draft inducer
Factory Warranty Parts: 10-year registered limited warranty on internal functional parts
Heat Exchanger Warranty: 20-year registered limited warranty on the heat exchanger
Sound Level: Quiet operation
Manufacturer's Stated Benefits:
- Microelectronic controller
- Heavy steel cabinet
- Durable silicon nitride hot surface igniter
- Multi-port, in-shot burners
- Tubular steel heat exchanger
- Pre-painted galvanized steel cabinet
- Insulated cabinet for quiet operation
Heat Pump Choices for Hybrid Heat Systems

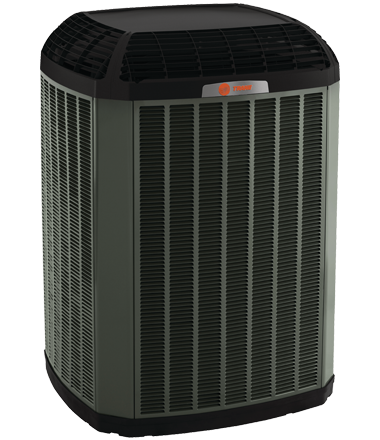

XV20i Variable Speed Heat Pump System
View Brochure
Model
Family: XV20i
Efficiency SEER2: Up to 20.5 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 8.7 HSPF2
Energy Star Rated: ENERGY STAR®
Sound Level: 54-76 DbA
Refrigerant Type: R-410A
Compressor: Climatuff® variable speed inverter compressor
Factory Warranty Parts: 10-year limited warranty on internal functional parts
Factory Warranty Compressor: 12-year limited warranty on compressor
Manufacturer's Stated Benefits:
- Variable-speed fan motor
- Woven Spine Fin™ coil
- Swept fan blade
- Compressor sound insulator
- ComfortLink™ II capability
- Two-wire connections

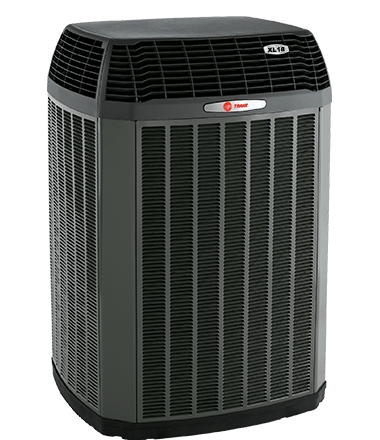

18 TruComfort™ Variable Speed Heat Pump
Model Family: 5TWV8X***
Efficiency SEER2: Up to 18.1 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 8.5 HSPF2
Energy Star Rated: No
Sound Level: 55-76
Refrigerant Type: R-454B
Compressor: Variable speed compressor
Factory Warranty Parts: 10-year limited warranty on functional parts with registration
Factory Warranty Compressor: 12-year limited warranty compressor, 10-year limited warranty outdoor coil with registration
Manufacturer's Stated Benefits:
- Powder-paint finish
- HVAC zoning with Trane Link™ connectivity to a compatible air handler or furnace
- The new quiet mode feature lets you limit the compressor speed to a minimum speed
XR16 Two-Stage Heat Pump
Model Family: XR16
Efficiency SEER2: Up to 16.2 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 8.1 HSPF2
Energy Star Rated: ENERGY STAR®
Sound Level: 72-74 DbA
Refrigerant Type: R-410A
Compressor: Climatuff® two-stage compressor
Factory Warranty Parts: 10-year limited warranty on internal functional parts
Factory Warranty Compressor: 10-year limited warranty on compressor
Manufacturer's Stated Benefits:
- Galvanized-steel louvered panels
- Baked-on powder paint
- Corrosion-resistant Weatherguard™ fasteners
- Spine Fin™ coil
15 Single-Stage Heat Pump
Model Family: 5TWR********
Efficiency SEER2: Up to 16.5 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 8.5 HSPF2
Energy Star Rated: ENERGY STAR® qualified
Sound Level: 71-75 DbA
Refrigerant Type: R454-B Refrigerant
Compressor: Single Stage Climatuff® compressor
Factory Warranty Parts: 10-year limited warranty compressor, outdoor coil, and functional parts with registration
Factory Warranty Compressor: 10-year limited warranty compressor, outdoor coil, and functional parts with registration
Manufacturer's Stated Benefits:
- Dual fuel dependability: Stay warm all winter long by pairing your electric heat pump with a gas furnace
- Lower global warming potential
